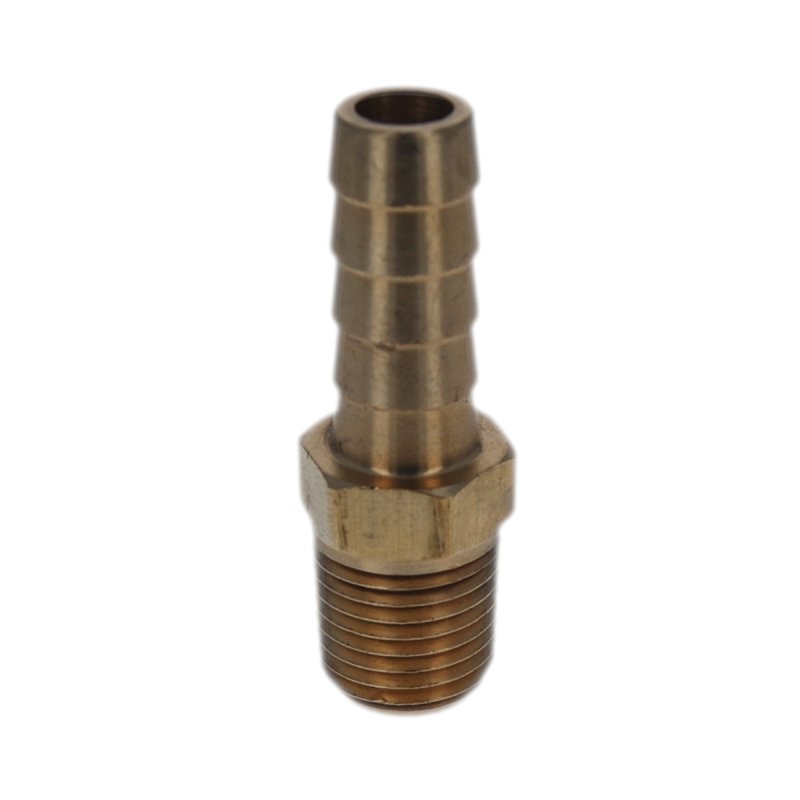

8241 STRAIGHT HOSE BARB 1/4 NPT 3/8 ID
Part #: 195-8241
Male Hose Barb Adapter used for connecting cooling lines to electrode holders. Designed for use with plastic or rubber tubing. Installation requires a hose clamp.
This part is made from brass
- The overall length is 1.75 IN
- The Hex Body outside diameter is 9/16 IN
- The hose barb installs via 1/4-18 NPT threads
- The diameter of the through hole is 3/8 (0.375 IN)
Specifications
| Material | Brass |
|---|---|
| Threads | 1/4 NPT |
| Overall Length | 1.75000 |
| Hex Width | 0.56250 |
| Hole Diameter | 0.37500 |
| Unit of Measure | IN |
