HD Self-Piloted-Nut Electrodes
Tuffaloy Heavy Duty Self-Piloted-Nut Electrodes have a fixed pin for positioning the nut during welding. The parts have an optional 10W weld face to improve the electrode life.
The Heavy Duty Self-Piloted-Nut Electrodes are designed for use with Tuffaloy's Heavy Duty Stud-Nut Holders which are suitable for high forces used for projection welding.

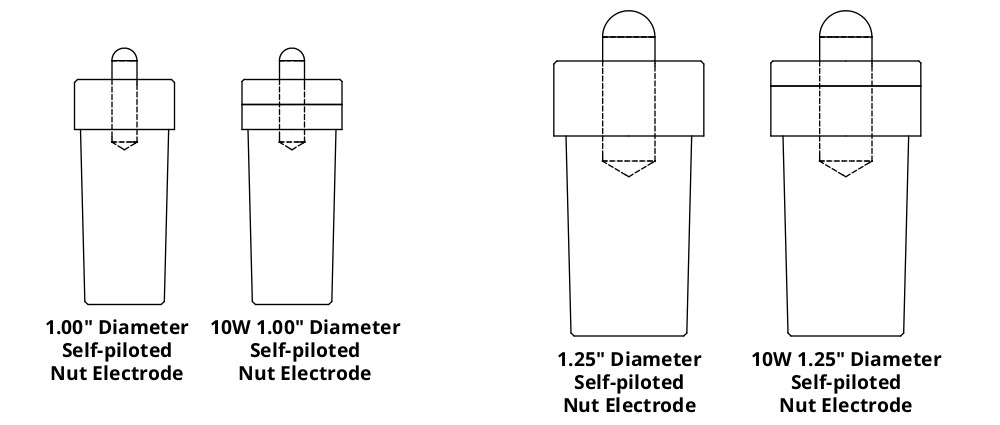

The parts have a large diameter taper available in two sizes:
- HD Size 1 with a 1.00 IN diameter weld face
- HD Size 2 with a 1.50 IN diameter weld face
| Part | Description | Face Refractory Material | RWMA Material Type | PM Style Engagement to Holder | Body Length | Weld Face Diameter | Pin Diameter | Pin Height | For Nut Size | Refractory Metal Thickness | Unit of Measure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 175-6061-10W | 606-10W (6mm) SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1760 | 0.2500 | 6 mm | 0.250 | IN |
| 175-4591 | 459 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.4720 | 0.4375 | 9/16 | IN | ||
| 175-4591-10W | 459-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.4720 | 0.4375 | 9/16 | 0.250 | IN |
| 175-4601 | 460 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.5220 | 0.5000 | 5/8 | IN | ||
| 175-4601-10W | 460-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.5220 | 0.5000 | 5/8 | 0.250 | IN |
| 175-4611 | 461 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.6000 | 0.5000 | 11/16 | IN | ||
| 175-4621 | 462 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.6250 | 3/4 | IN | |||
| 175-4621-10W | 462-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.6250 | 3/4 | 0.250 | IN | |
| 175-6061 | 606 (6mm) SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1760 | 0.2500 | 6 mm | IN | ||
| 175-4581-10W | 458-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.4125 | 0.4375 | 1/2 | 0.250 | IN |
| 175-6071 | 607 (7mm) SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.2160 | 0.3125 | 7 mm | IN | ||
| 175-6091 | 609 (9mm) SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.2780 | 0.3750 | 9 mm | IN | ||
| 175-6091-10W | 609-10W (9mm) SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.2780 | 0.3750 | 9 mm | 0.250 | IN |
| 175-6101 | 610 (10mm) SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.3750 | 10 mm | IN | |||
| 175-6101-10W | 610-10W (10mm) SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.3750 | 10 mm | 0.250 | IN | |
| 175-6102 | 610-2 (10mm) SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.3750 | 10 mm | IN | |||
| 175-6122 | 612-2 (12mm) SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.4375 | 12 mm | IN | |||
| 175-6122-10W | 612-2-10W (10mm) SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.4375 | 12 mm | 0.250 | IN | |
| 175-4151-10W | 415-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.2500 | 0.3125 | 5/16 (8mm) | 0.250 | IN |
| 175-4111-10W | 411-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1250 | 0.1875 | #8 | 0.250 | IN |
| 175-4121 | 412 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1520 | 0.1875 | #10 | IN | ||
| 175-4121-10W | 412-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1520 | 0.1875 | #10 | 0.250 | IN |
| 175-4131 | 413 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1770 | 0.2500 | #12 | IN | ||
| 175-4131-10W | 413-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1770 | 0.2500 | #12 | 0.250 | IN |
| 175-4141 | 414 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1900 | 0.3125 | 1/4 | IN | ||
| 175-4141-10W | 414-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1900 | 0.3125 | 1/4 | 0.250 | IN |
| 175-4151 | 415 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.2500 | 0.3125 | 5/16 (8mm) | IN | ||
| 175-4111 | 411 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.1250 | 0.1875 | #8 | IN | ||
| 175-4161 | 416 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.3020 | 0.3750 | 3/8 | IN | ||
| 175-4161-10W | 416-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 1 | 2.25000 | 1 | 0.3020 | 0.3750 | 3/8 | 0.250 | IN |
| 175-4561 | 456 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.3020 | 0.3750 | 3/8 | IN | ||
| 175-4561-10W | 456-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.3020 | 0.3750 | 3/8 | 0.250 | IN |
| 175-4571 | 457 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.3600 | 0.3750 | 7/16 | IN | ||
| 175-4571-10W | 457-10W SELF-PILOTED-NUT ELECT. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.3600 | 0.3750 | 7/16 | 0.250 | IN |
| 175-4581 | 458 SELF-PILOTED-NUT ELECT. | RWMA Class 2 - C18200 | HD Size 2 | 2.75000 | 1.5 | 0.4125 | 0.4375 | 1/2 | IN |
