SW TIP, SINGLE

SW TIP, SINGLE

Part #: 811-071343

Request 3D Model

Request 3D Model

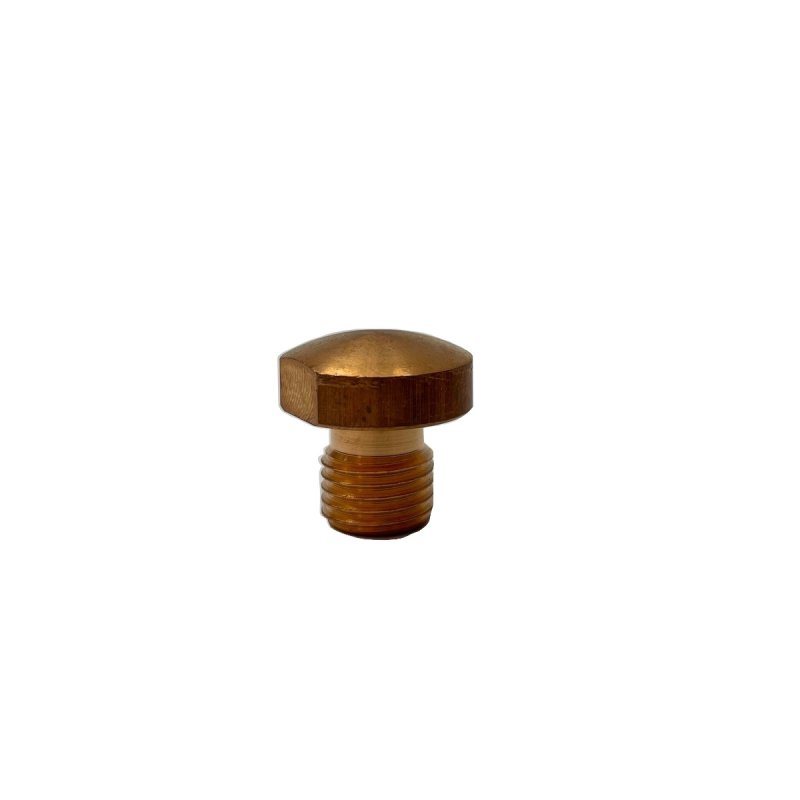

SW tip for use with air cooled spot welding tongs. Includes one tip (1 piece) with 3/8-24 threads and F nose weld face

RMWA Class 2 material is a high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 0.625 IN
  • The outside diameter is 0.625 IN
  • The part mounts via 3/8-24 threads
  • The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.

Specifications

Material Type RWMA Class 2 Copper
Thread for Electrode 3/8 - 24
Nose Type F
Overall Length 0.62500
OUTSIDE DIAMETER 0.62500
Unit of Measure IN
