Offset Holders

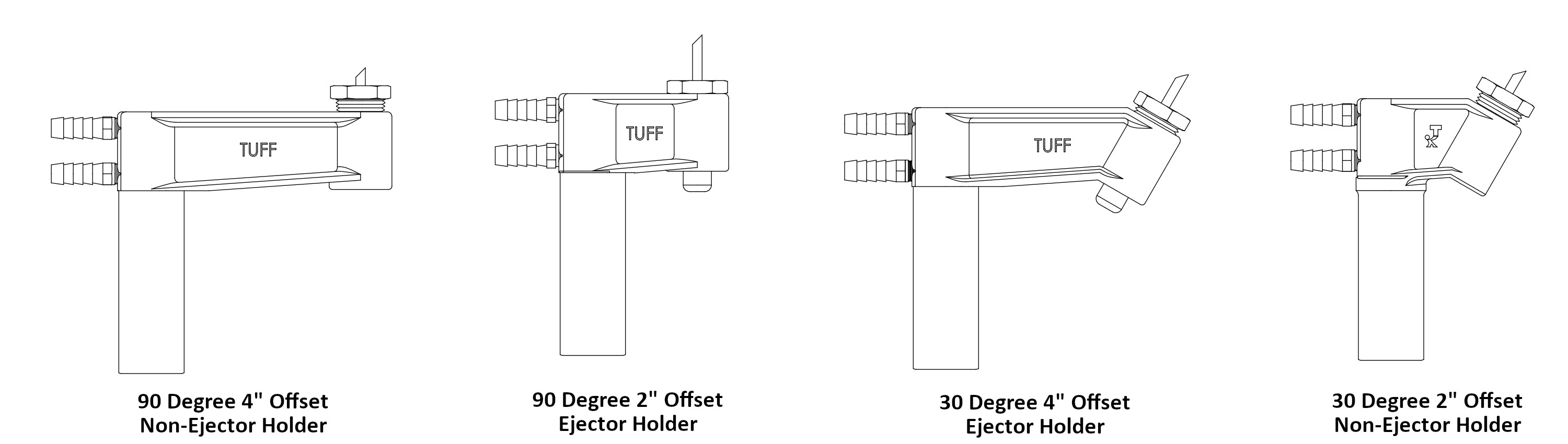

Standard Offset holders are designed to optimize tool life. The holder comes with a threaded electrode adapter which can be replaced when the taper wears out. These holders are commonly used with Rocker Arm and Pedestal Type welders.
The offset holders are:
- available with offsets of 2 inches or 4 inches
- available with a 90 degree or 30 degree engagement angle
- available with an ejector buttor for easy removal of the electrode
- available in five different shank diameters to accomodate different weld forces
| Part | Description | RWMA Material | Shank Diameter | Adapter Tip Socket (RWMA Taper) | Offset | Shank Length | Unit of Measure | Socket Angle | Ejector Type |
|---|---|---|---|---|---|---|---|---|---|
| 335-1170 | ON-1255-430 OFFSET HOLDER | RWMA Class 2 | 1.25 | 5RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1270 | ON-155-430 OFFSET HOLDER | RWMA Class 2 | 1.5 | 5RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1260 | ON-155-290 OFFSET HOLDER | RWMA Class 2 | 1.5 | 5RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1250 | ON-155-230 OFFSET HOLDER | RWMA Class 2 | 1.5 | 5RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-1230 | ON-154-490 OFFSET HOLDER | RWMA Class 2 | 1.5 | 4RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1220 | ON-154-430 OFFSET HOLDER | RWMA Class 2 | 1.5 | 4RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1210 | ON-154-290 OFFSET HOLDER | RWMA Class 2 | 1.5 | 4RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1200 | ON-154-230 OFFSET HOLDER | RWMA Class 2 | 1.5 | 4RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-1180 | ON-1255-490 OFFSET HOLDER | RWMA Class 2 | 1.25 | 5RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1280 | ON-155-490 OFFSET HOLDER | RWMA Class 2 | 1.5 | 5RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1160 | ON-1255-290 OFFSET HOLDER | RWMA Class 2 | 1.25 | 5RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1150 | ON-1255-230 OFFSET HOLDER | RWMA Class 2 | 1.25 | 5RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-1130 | ON-1254-490 OFFSET HOLDER | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1120 | ON-1254-430 OFFSET HOLDER | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1110 | ON-1254-290 OFFSET HOLDER | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1100 | ON-1254-230 OFFSET HOLDER | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1080 | ON-15-490 OFFSET HOLDER | RWMA Class 2 | 1 | 5RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1070 | ON-15-430 OFFSET HOLDER | RWMA Class 2 | 1 | 5RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1380 | ON-755-490 OFFSET HOLDER | RWMA Class 2 | 0.75 | 5RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1480 | ON-875-490 OFFSET HOLDER | RWMA Class 2 | 0.875 | 5RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1470 | ON-875-430 OFFSET HOLDER | RWMA Class 2 | 0.875 | 5RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1460 | ON-875-290 OFFSET HOLDER | RWMA Class 2 | 0.875 | 5RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1450 | ON-875-230 OFFSET HOLDER | RWMA Class 2 | 0.875 | 5RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-1430 | ON-874-490 OFFSET HOLDER | RWMA Class 2 | 0.875 | 4RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1420 | ON-874-430 OFFSET HOLDER | RWMA Class 2 | 0.875 | 4RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1410 | ON-874-290 OFFSET HOLDER | RWMA Class 2 | 0.875 | 4RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1400 | ON-874-230 OFFSET HOLDER | RWMA Class 2 | 0.875 | 4RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-1060 | ON-15-290 OFFSET HOLDER | RWMA Class 2 | 1 | 5RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1370 | ON-755-430 OFFSET HOLDER | RWMA Class 2 | 0.75 | 5RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1360 | ON-755-290 OFFSET HOLDER | RWMA Class 2 | 0.75 | 5RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1350 | ON-755-230 OFFSET HOLDER | RWMA Class 2 | 0.75 | 5RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-1330 | ON-754-490 OFFSET HOLDER | RWMA Class 2 | 0.75 | 4RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1320 | ON-754-430 OFFSET HOLDER | RWMA Class 2 | 0.75 | 4RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1310 | ON-754-290 OFFSET HOLDER | RWMA Class 2 | 0.75 | 4RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1300 | ON-754-230 OFFSET HOLDER | RWMA Class 2 | 0.75 | 4RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-0160 | OE-1255-290 OFFSET HOLDER | RWMA Class 2 | 1.25 | 5RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0280 | OE-155-490 OFFSET HOLDER | RWMA Class 2 | 1.5 | 5RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0270 | OE-155-430 OFFSET HOLDER | RWMA Class 2 | 1.5 | 5RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0260 | OE-155-290 OFFSET HOLDER | RWMA Class 2 | 1.5 | 5RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0230 | OE-154-490 OFFSET HOLDER | RWMA Class 2 | 1.5 | 4RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0220 | OE-154-430 OFFSET HOLDER | RWMA Class 2 | 1.5 | 4RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0210 | OE-154-290 OFFSET HOLDER | RWMA Class 2 | 1.5 | 4RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0180 | OE-1255-490 OFFSET HOLDER | RWMA Class 2 | 1.25 | 5RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0170 | OE-1255-430 OFFSET HOLDER | RWMA Class 2 | 1.25 | 5RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0310 | OE-754-290 OFFSET HOLDER | RWMA Class 2 | 0.75 | 4RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0130 | OE-1254-490 OFFSET HOLDER | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0120 | OE-1254-430 OFFSET HOLDER | RWMA Class 2 | 1.25 | 4RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0110 | OE-1254-290 OFFSET HOLDER | RWMA Class 2 | 1.25 | 4RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0080 | OE-15-490 OFFSET HOLDER | RWMA Class 2 | 1 | 5RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0070 | OE-15-430 OFFSET HOLDER | RWMA Class 2 | 1 | 5RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0060 | OE-15-290 OFFSET HOLDER | RWMA Class 2 | 1 | 5RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0030 | OE-14-490 OFFSET HOLDER | RWMA Class 2 | 1 | 4RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0020 | OE-14-430 OFFSET HOLDER | RWMA Class 2 | 1 | 4RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0430 | OE-874-490 OFFSET HOLDER | RWMA Class 2 | 0.875 | 4RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-1050 | ON-15-230 OFFSET HOLDER | RWMA Class 2 | 1 | 5RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-1030 | ON-14-490 OFFSET HOLDER | RWMA Class 2 | 1 | 4RW | 4.0000 | 3.500 | IN | 90.0 | No |
| 335-1020 | ON-14-430 OFFSET HOLDER | RWMA Class 2 | 1 | 4RW | 4.0000 | 3.500 | IN | 30.0 | No |
| 335-1010 | ON-14-290 OFFSET HOLDER | RWMA Class 2 | 1 | 4RW | 2.0000 | 3.500 | IN | 90.0 | No |
| 335-1000 | ON-14-230 OFFSET HOLDER | RWMA Class 2 | 1 | 4RW | 2.0000 | 3.500 | IN | 30.0 | No |
| 335-0480 | OE-875-490 OFFSET HOLDER | RWMA Class 2 | 0.875 | 5RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0470 | OE-875-430 OFFSET HOLDER | RWMA Class 2 | 0.875 | 5RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0460 | OE-875-290 OFFSET HOLDER | RWMA Class 2 | 0.875 | 5RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0010 | OE-14-290 OFFSET HOLDER | RWMA Class 2 | 1 | 4RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0420 | OE-874-430 OFFSET HOLDER | RWMA Class 2 | 0.875 | 4RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0410 | OE-874-290 OFFSET HOLDER | RWMA Class 2 | 0.875 | 4RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0380 | OE-755-490 OFFSET HOLDER | RWMA Class 2 | 0.75 | 5RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0370 | OE-755-430 OFFSET HOLDER | RWMA Class 2 | 0.75 | 5RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
| 335-0360 | OE-755-290 OFFSET HOLDER | RWMA Class 2 | 0.75 | 5RW | 2.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0330 | OE-754-490 OFFSET HOLDER | RWMA Class 2 | 0.75 | 4RW | 4.0000 | 3.500 | IN | 90.0 | Yes |
| 335-0320 | OE-754-430 OFFSET HOLDER | RWMA Class 2 | 0.75 | 4RW | 4.0000 | 3.500 | IN | 30.0 | Yes |
