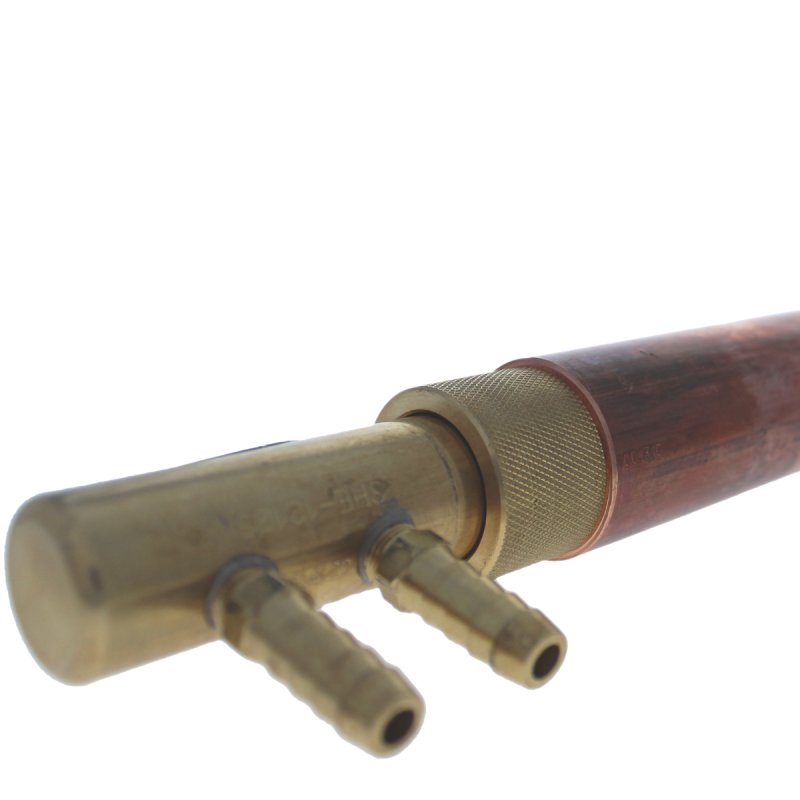

E-12086-A HOLDER

Part #: 320-0385

Request 3D Model

Straight holders or barrel holders have a simple design to minimize the maintenance costs for users. The holders have adjustable water tubes to maximize cooling of the tip which maximizes tip life. Straight holders are designed for use with Rocker Arm and Pedestal Type welders.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

The overall length is 8.000 IN
The outside diameter is 1.500 IN
The part holds a subcomponent via a 6RW standard taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
Ejector Type Part
This holder includes the 190-3613 threaded electrode adapter

Specifications

RWMA Material Type	RWMA Class 2
RMWA Taper	6RW
Holder Type	Goldcrown Ejector
Barrel Length	8.00000
Barrel Dia.	1.50000
Unit of Measure	IN
Ejector Type	Yes
Adapter Included	Yes
