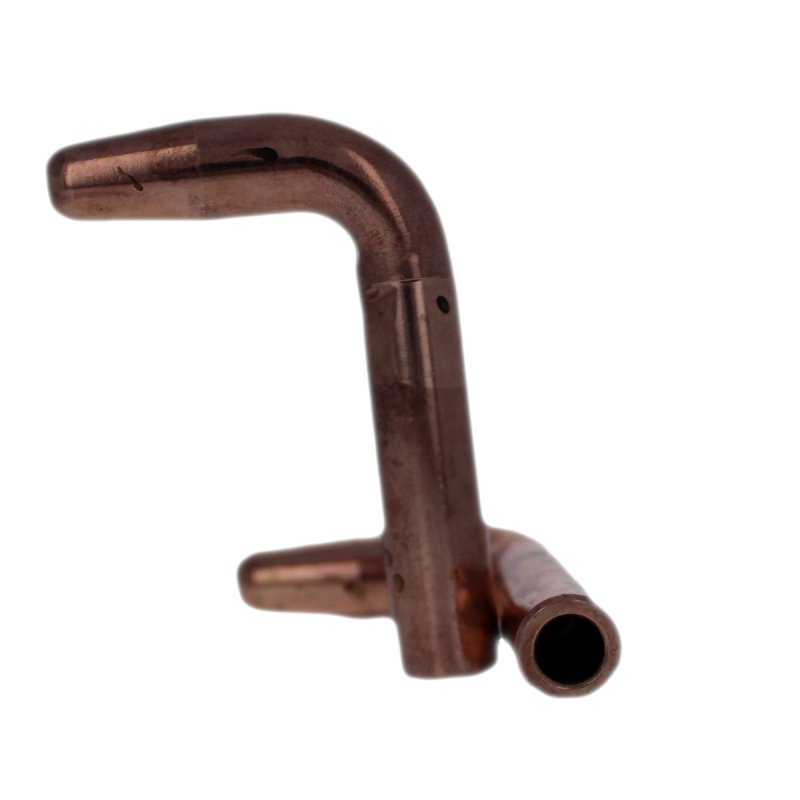

SE-4408-2 SHANK TIP

Part #: 170-4418

Request 3D Model

Straight Shank Tips are designed for use with Variable Offset Holders. Users can modify the offset by positioning the tip in place then tightening the set screw to lock the tip in position.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 3.000 IN
The part mounts via a 0.625 IN diameter
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.25 IN
The offset is 2.000 IN
The engagement angle is 90 Degrees

Specifications

RWMA Material Type	RWMA Class 2 - C18200
Shank Enagement Dia.	0.625 IN diameter
Nose Type	A
Overall Length	3.00000
Weldface Dia.	0.25
Offset	2.0000
Unit of Measure	IN
Nose Engagement Angle	90.0
