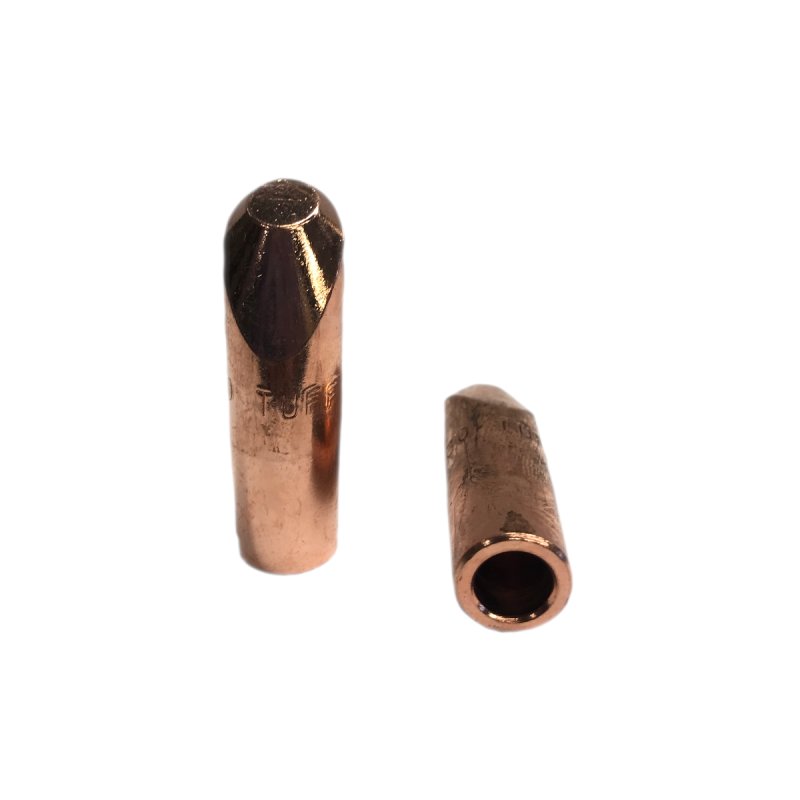

H-2508-30 TIP

Part #: 145-2508

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.00 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The H nose or angled offset nose is designed to accommodate the angled offset the electrode holder and ensure the weldface is perpendicular to the workpieces.
The weld face is 0.375 IN
The engagement angle is 30 Degrees

See ways to use this part

Click the video title to watch on YouTube

Tuffaloy Double Bend Electrodes in a Channel

Tuffaloy Spot Weld Bracket to Channel

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	5RW
Nose Type	H
Overall Length	2.00000
Outer Diameter	0.62500
Welding Face Dia.	0.375
Water Hole Dia.	0.37500
Water Hole Depth	1.250
Unit of Measure	IN
Nose Engagement Angle	30.0
