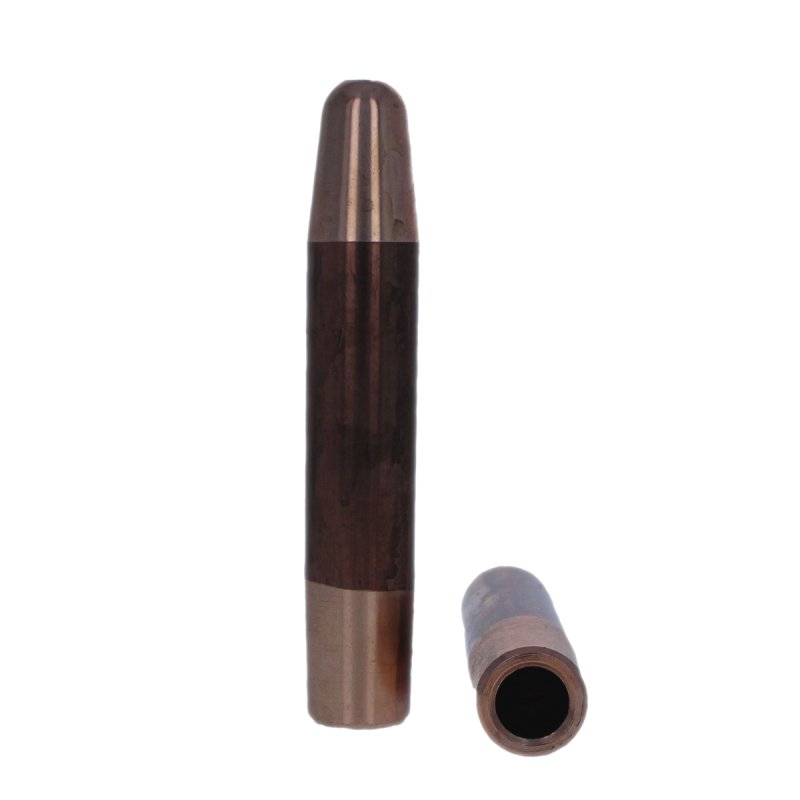

A-3512 TIP

Part #: 150-3512

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

The overall length is 3.00 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.25 IN

See ways to use this part

Click the video title to watch on YouTube

Tuffaloy Double Bend Electrodes in a Channel

Tuffaloy Spot Weld Bracket to Channel

Specifications

RWMA Material Type	RWMA Class 3 - C18000
RWMA Taper	5RW
Nose Type	A
Overall Length	3.00000
Outer Diameter	0.62500
Welding Face Dia.	0.25
Water Hole Dia.	0.37500
Water Hole Depth	2.250
Nose Length	0.8750
Unit of Measure	IN
